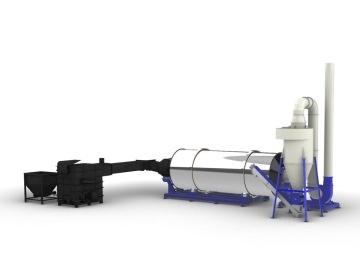

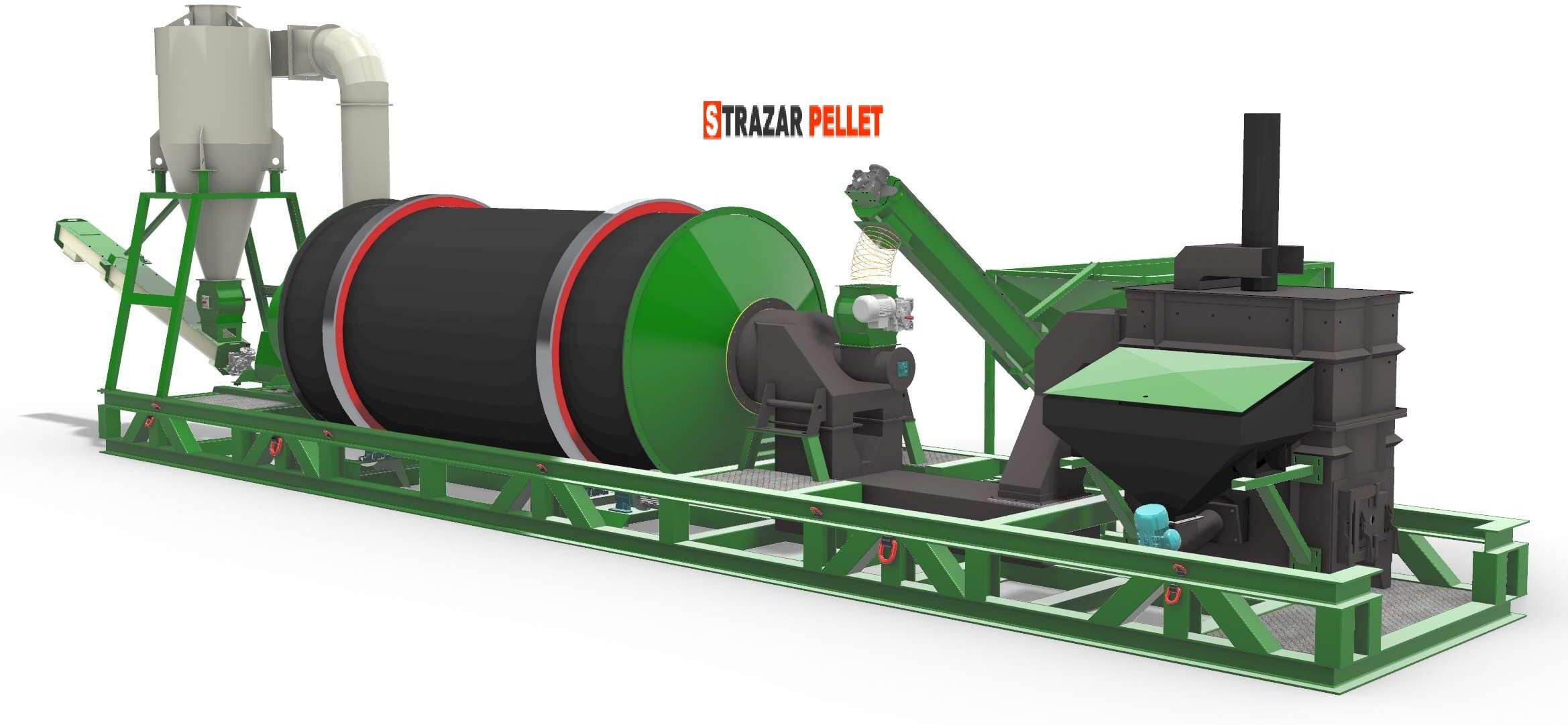

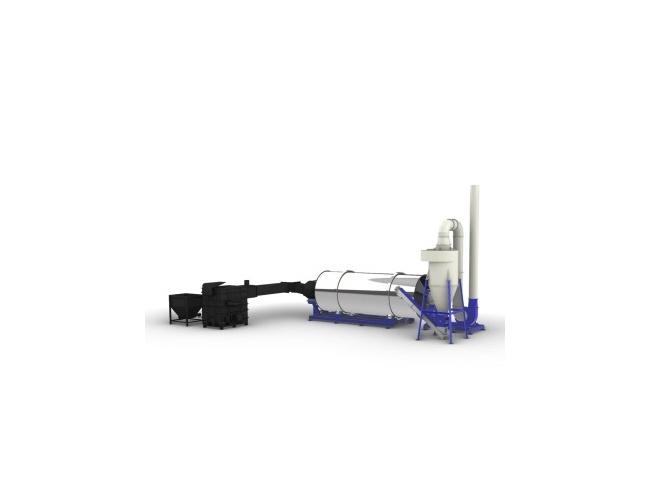

Rotary dryer SPB-5 used in the wood chip briquetting line, producing briquettes and pellets from wood chips.
Technical specifications:
Dry wood chip productivity up to: 500 kg/hour depending on the raw material
Raw material moisture at input: up to 35-45%
Raw material moisture at output: 12-14-16%
Size of the material fed for drying: 3-7 mm
Heat generator: 400KW
Total installed power: 18 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: mm Width: mm Height: mm
Weight: approximately 5500 kg
Dimensions and equipment level according to the workshop and requirements
Technology used from 2023
Working principle of the dryer:

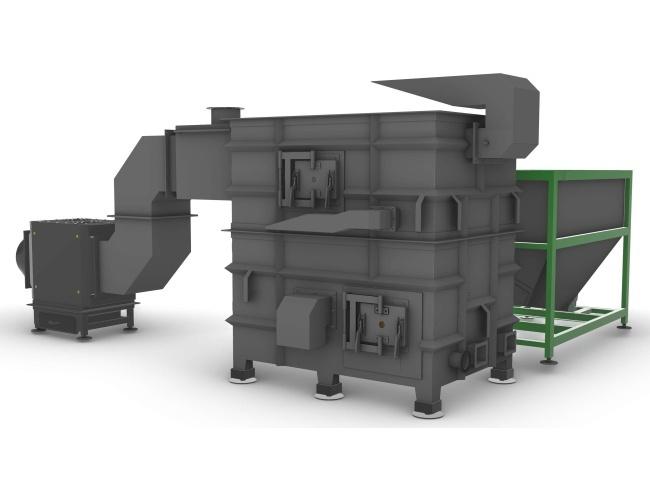

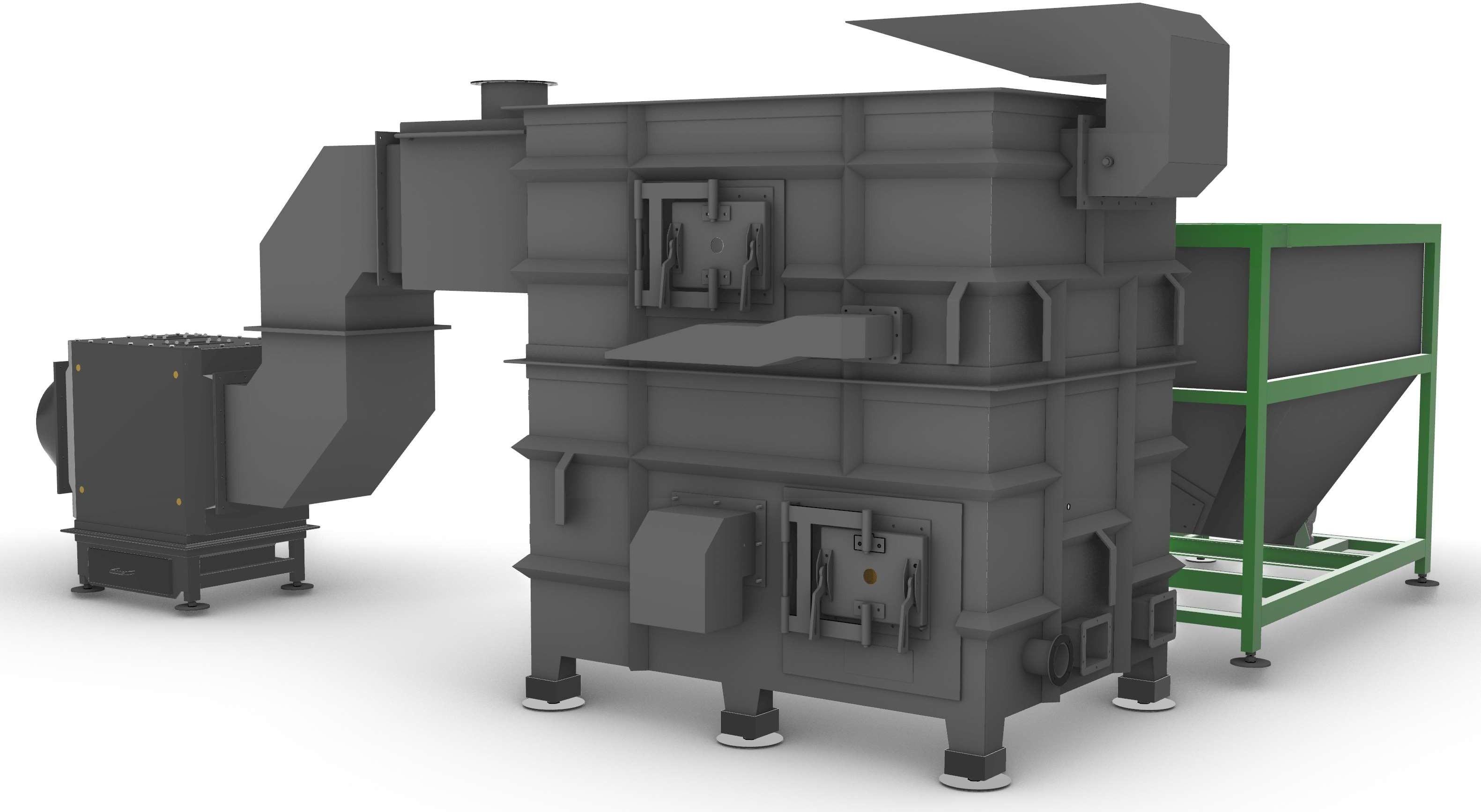

1. Heat generator - made of steel and high-temperature resistant refractory material
2. Raw material feeding tank - Volume: 1.6 - 3 cubic meters, with a dosing screw to feed the dryer
3. Rotary tube with 3 chambers and coils
4. Fan, Cyclone with free-fall rotary valve
5. Control panel and automated operation program through Siemens LCD based on the raw material's moisture

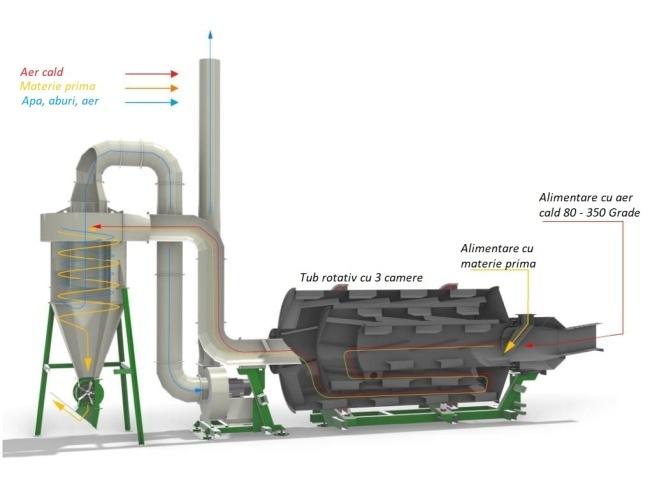

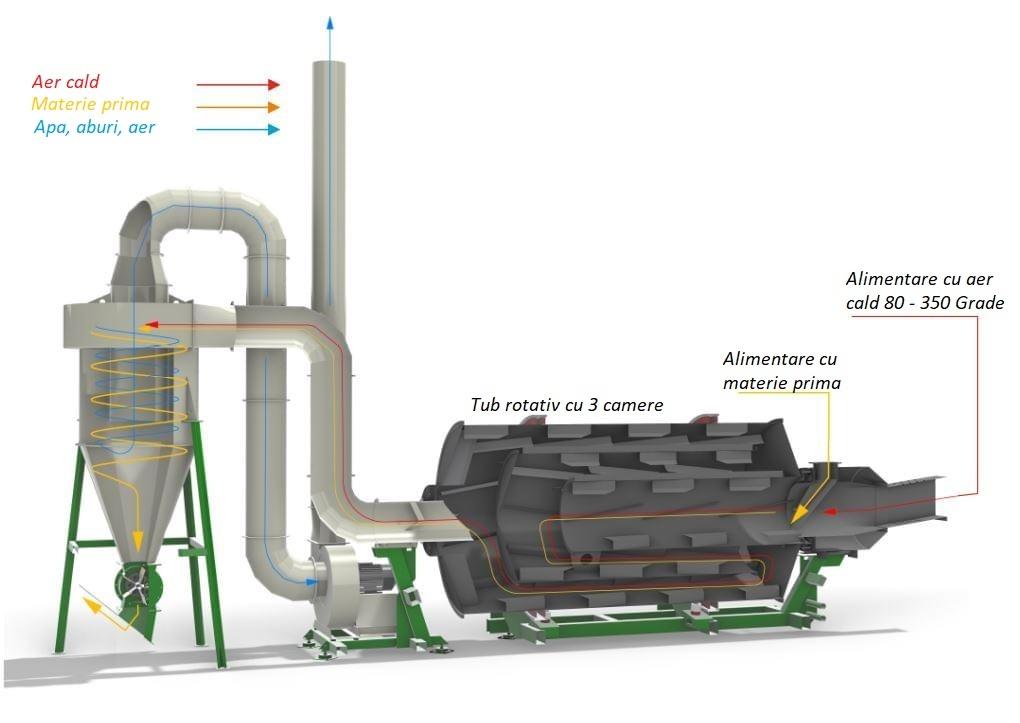

Drying process: Wet raw material passes through the rotary tube composed of 3 drying chambers in the form of coils, where it loses its moisture by mixing with hot air. Then, the dried material falls from the cyclone with a rotary valve, and the humid air is ventilated into the atmosphere by the fan.
Optional accessories for SPB-5 wood chip rotary dryer:
Industrial bark separator
Remote control internet connection
In-line moisture sensors at input and output

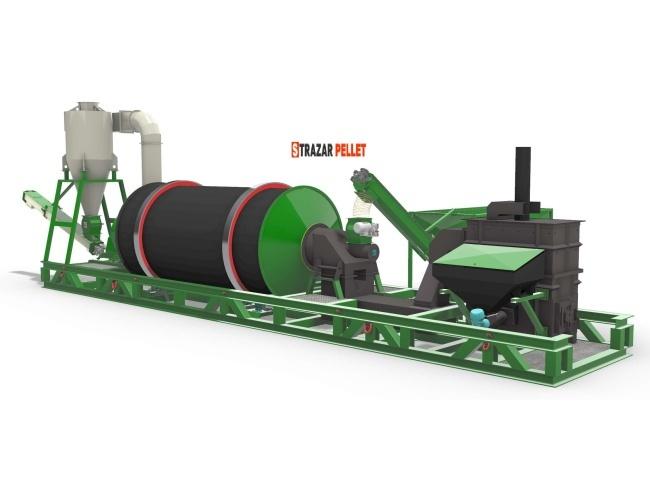

Mobile version of the rotary dryer
