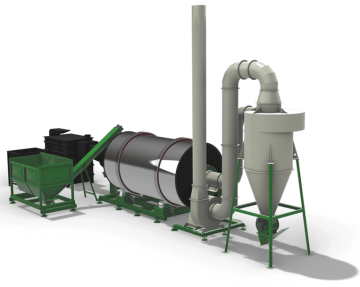

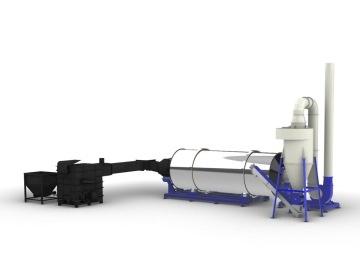

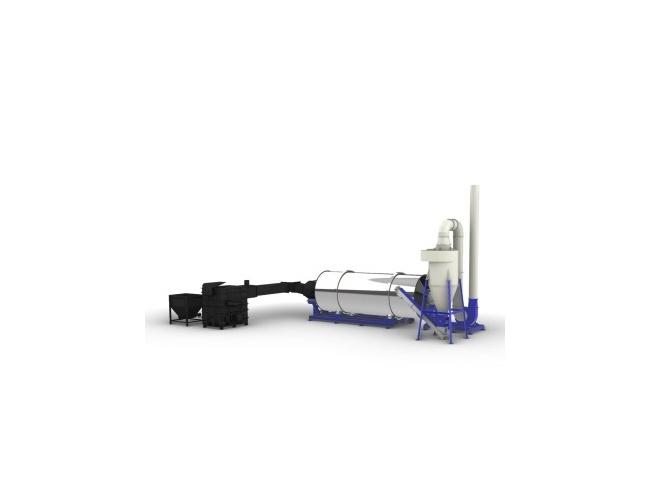

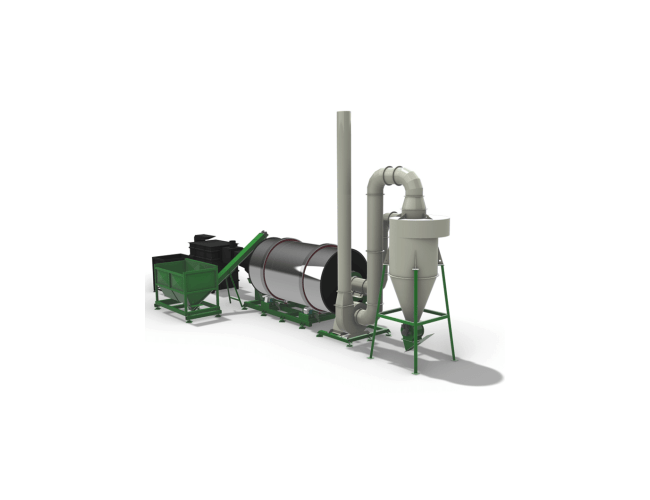

Rotary Dryer SPB-30 used in the wood chip briquetting line for production of briquettes and pellets from wood chips.
Technical specifications:
Dry wood chips productivity up to: 3000 kg/hour depending on the raw material
Moisture content of the raw material at the inlet: up to 35-45%
Moisture content of the raw material at the outlet: 12-14-16%
Size of the material fed for drying: 3-7 mm
Heat generator: 1.5MW
Total installed power: 63 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: mm, Width: mm, Height: mm
Weight: approximately 10000 kg
Dimensions and level of equipment depend on the workshop and requirements
Technology used from 2023
Working principle of the dryer:

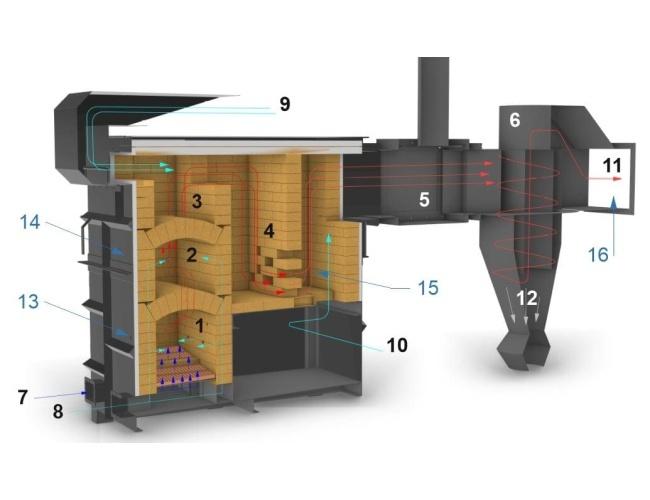

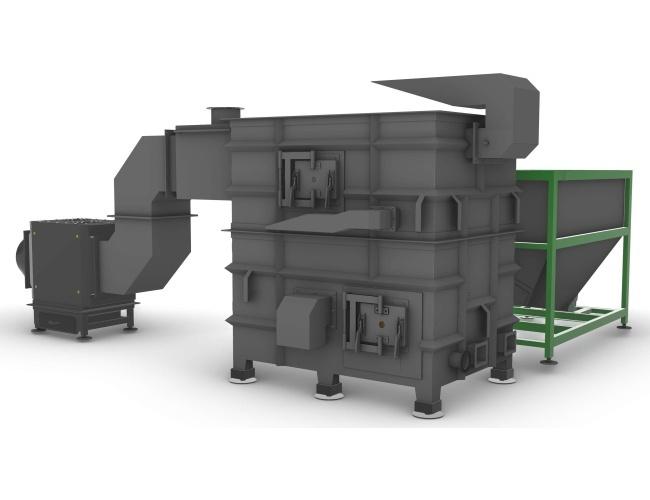

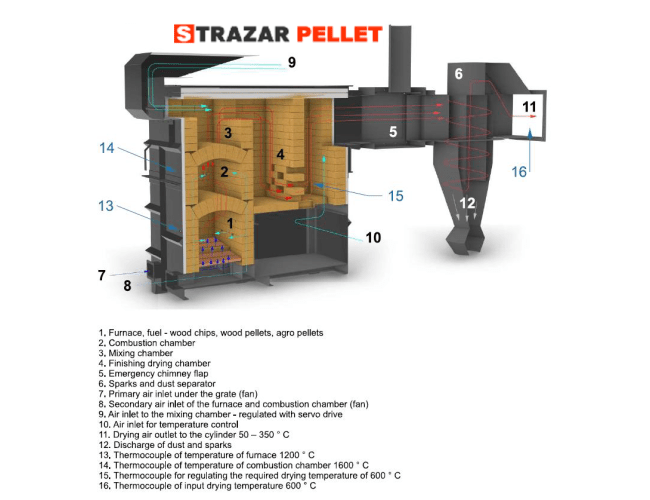

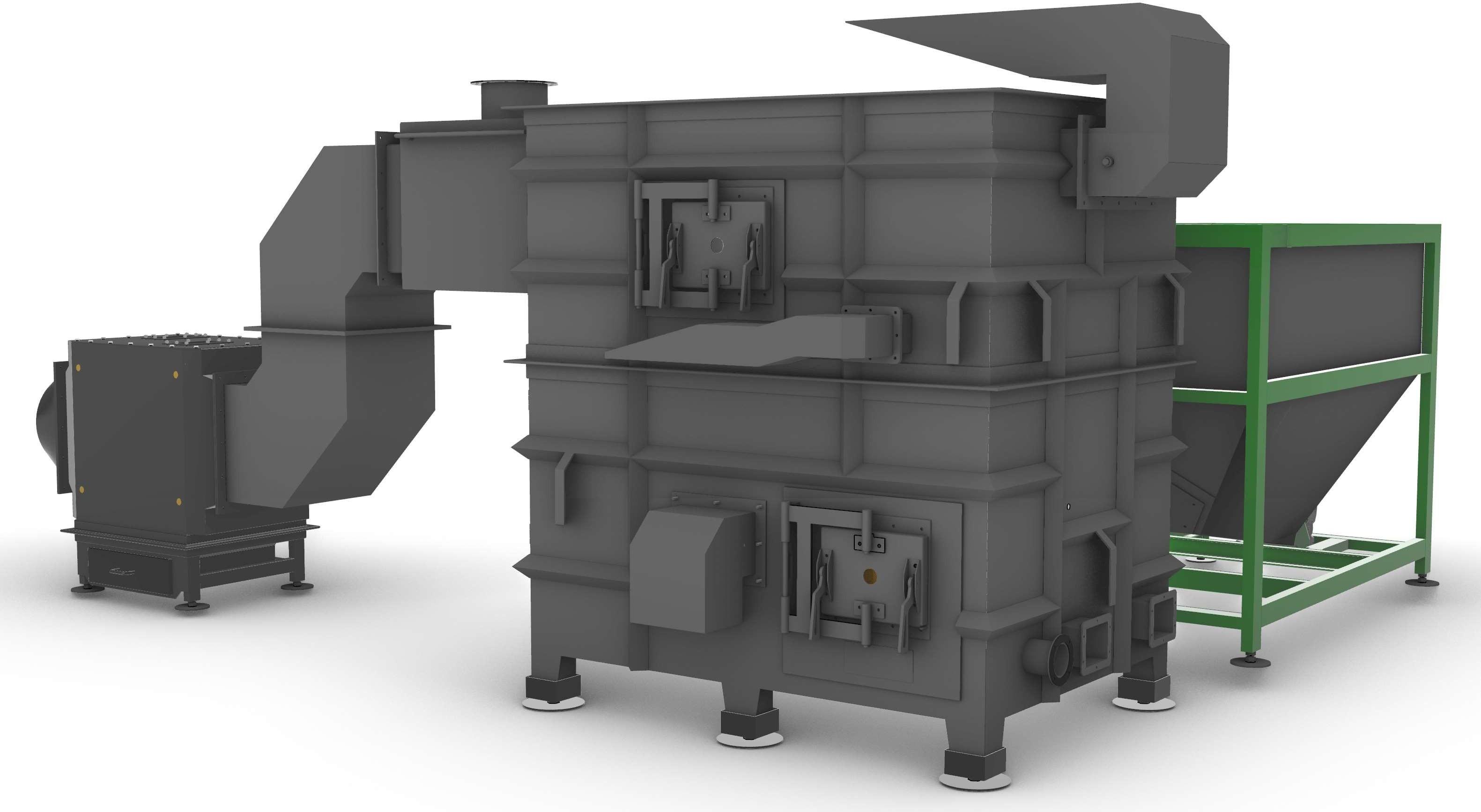

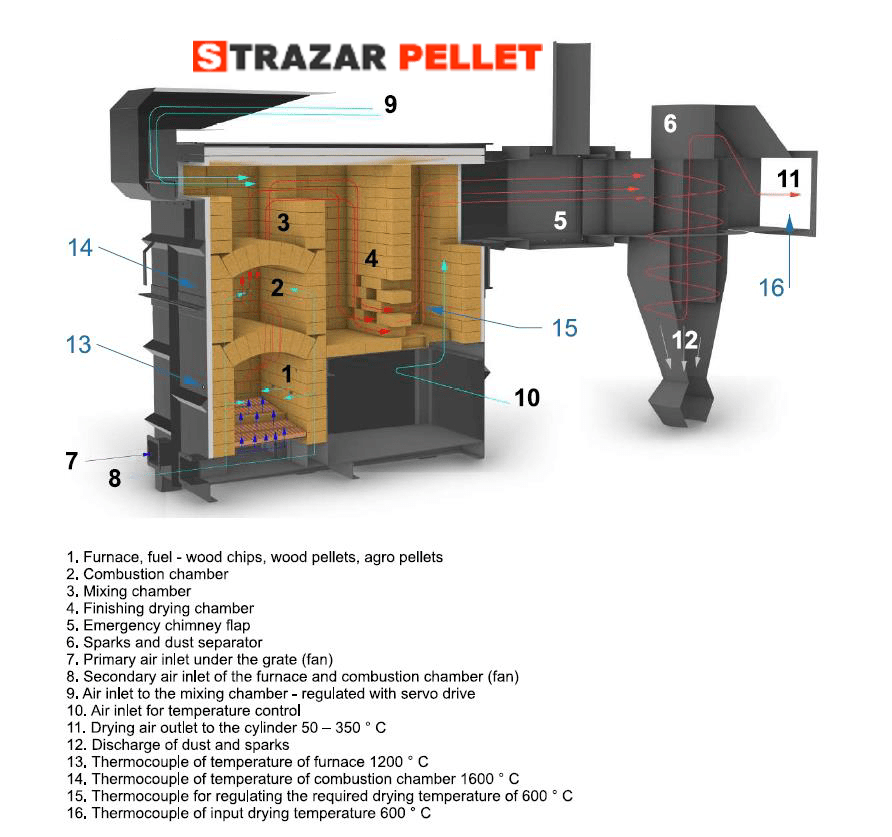

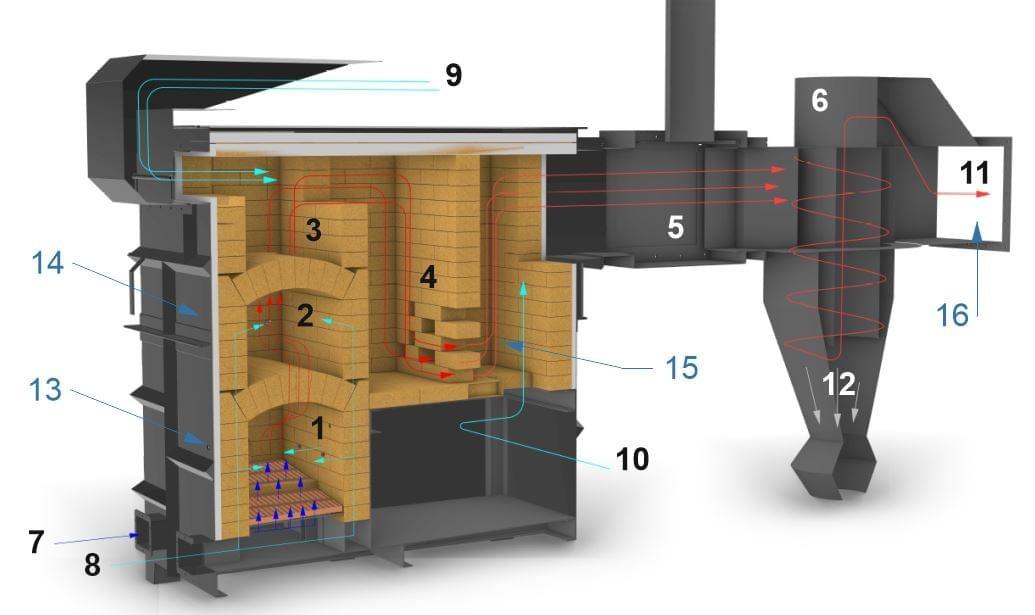

1. Heat generator - steel and high-temperature resistant refractory construction
2. Raw material feeding tank - Volume: 1.6 - 3 cubic meters with dosing screw into the dryer
3. Rotary tube with 3 chambers with coils
4. Fan, Cyclone with rotary valve and free fall
5. Control panel and automated operation program through Siemens LCD based on the moisture content of the raw material

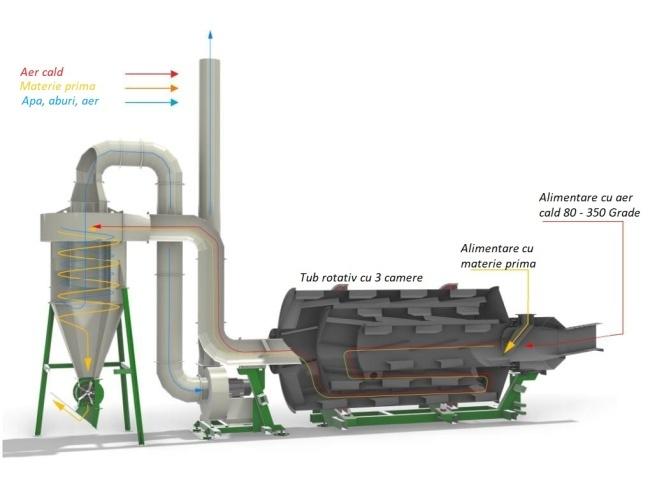

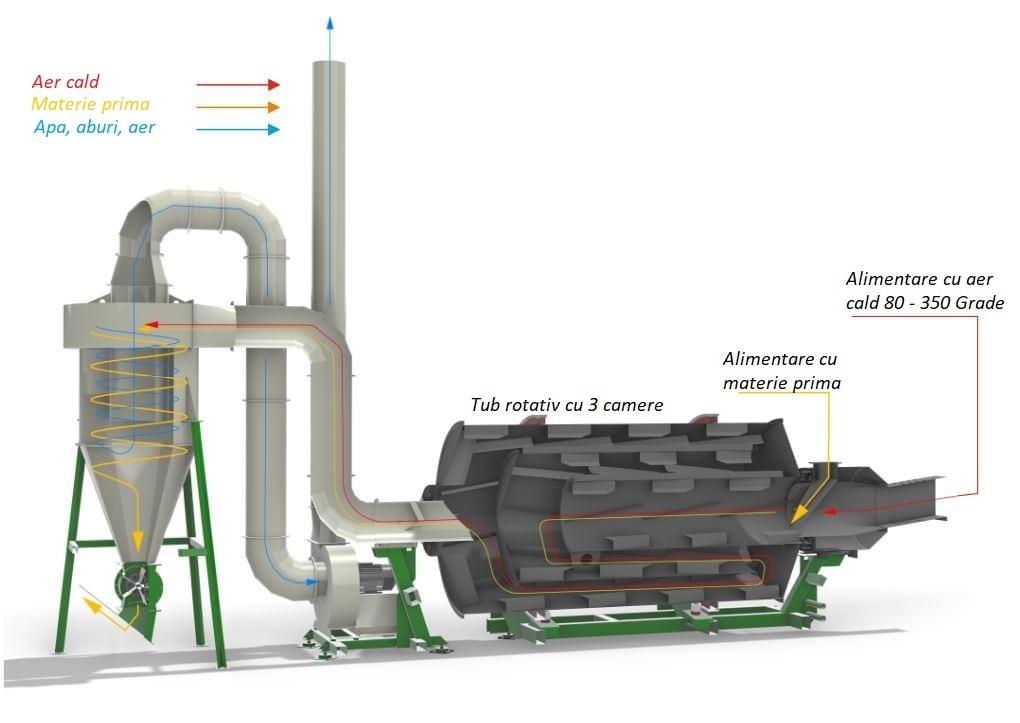

Drying process: The wet raw material passes through the rotary tube consisting of 3 drying chambers in the form of coils, where it mixes and loses its moisture. Then, the dried raw material falls from the cyclone with a rotary valve, while the humid air is vented into the atmosphere through the fan.
Optional accessories for SPB-30 wood chip rotary dryer:

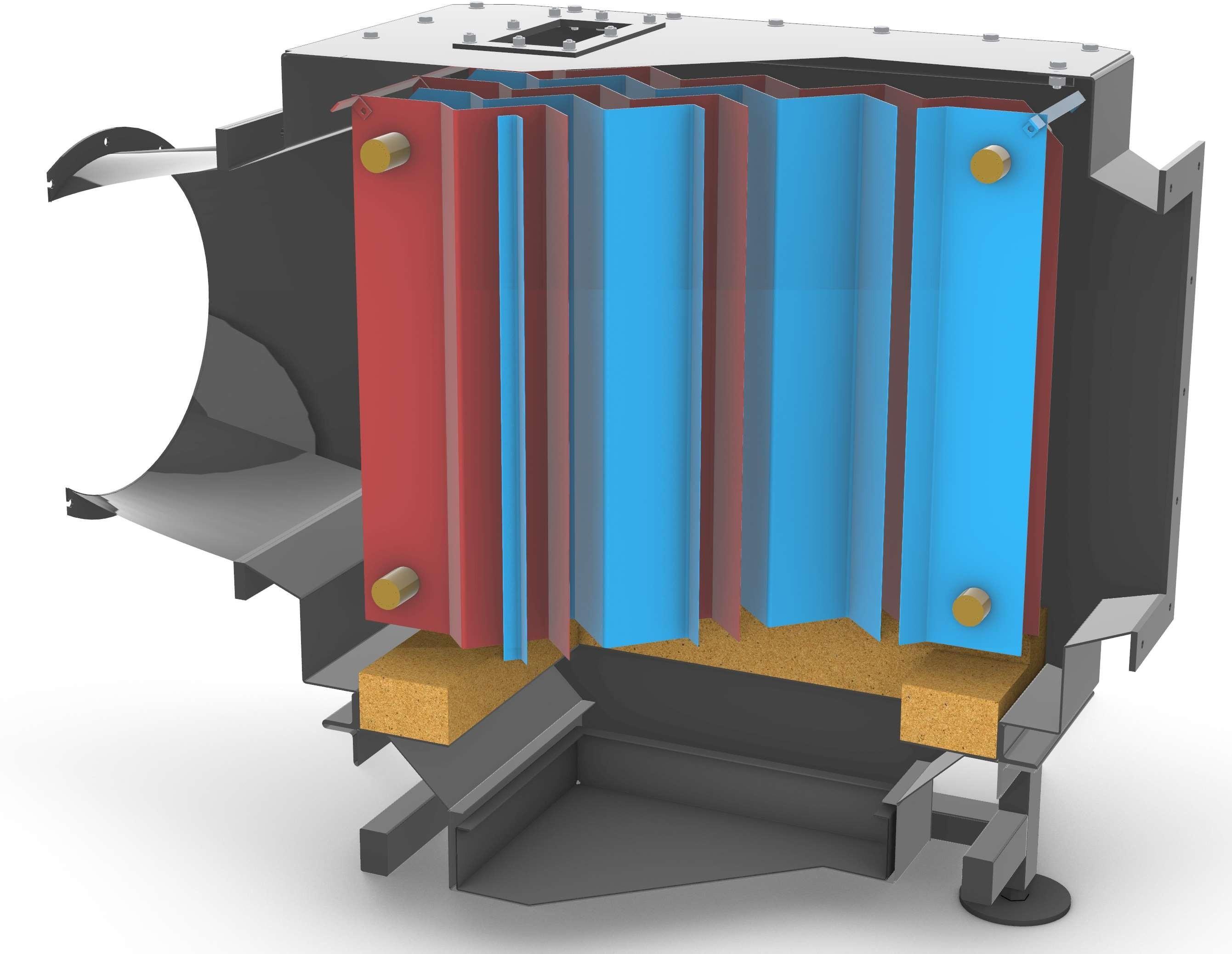

Industrial spark separator
Remote control internet connectivity
In-line moisture sensors at the inlet and outlet

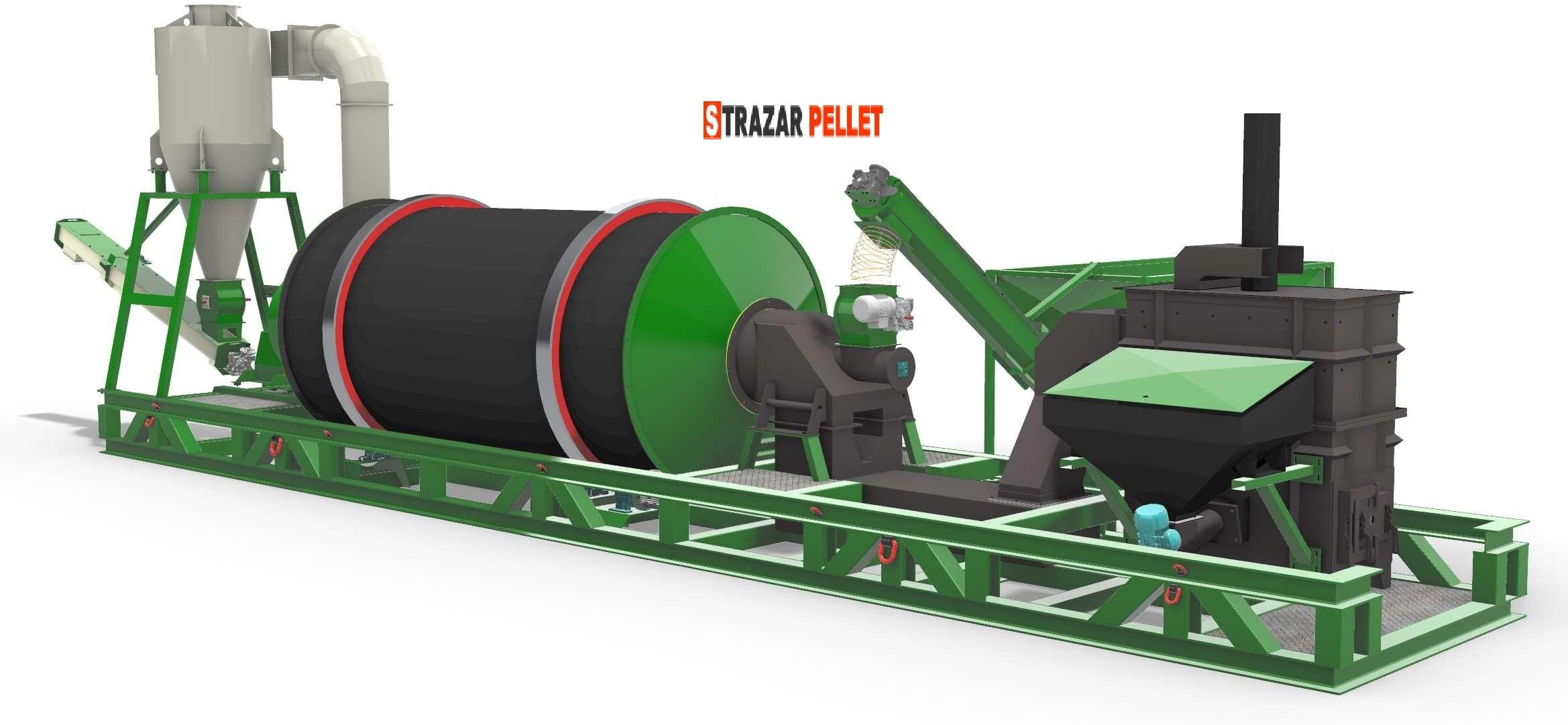

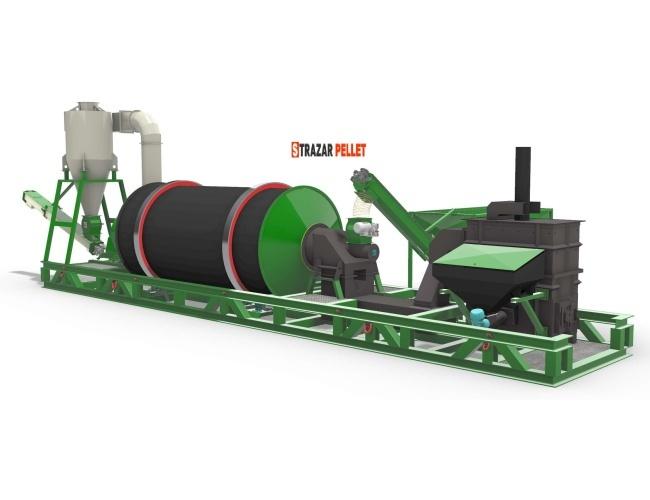

Mobile version of the rotary dryer
