Pellet Press Germany, model: RMP-520
Technical Specifications:
Productivity up to: 2000 kg/hour depending on the raw material:
RMP-520 up to 2000 kg/hour, Main Motor 2 X 55/75 kW
Ring die inner diameter: 500/520 mm
Pellet diameter - granules: 4 - 8 mm
Pellet length depending on the cutter: 15 - 60 mm
Main electric motor 2 X 55/75 kW
Three-phase current - 400V, coil voltage 24V/230V within +/- 5% limits, frequency 50 Hz
Length: 2600 mm
Width: 2150 mm
Height: 2150 mm
Weight: 5500 kg
Raw material moisture content: 12 - 14 - 16% - moisture affects pellet quality and productivity
Raw material size: 3 - 5 mm
Pellet density at the granulator outlet up to 1250 kg/m3
Bulk density in Big-Bags up to 700 kg/m3
Types of raw material: wood shavings, cereal straw, alfalfa, feed, and other biomass waste.
Each raw material has different taper and dimensions on the ring die.
Fully accessorized Wood Shavings Pellet Press RMP-520 consists of:

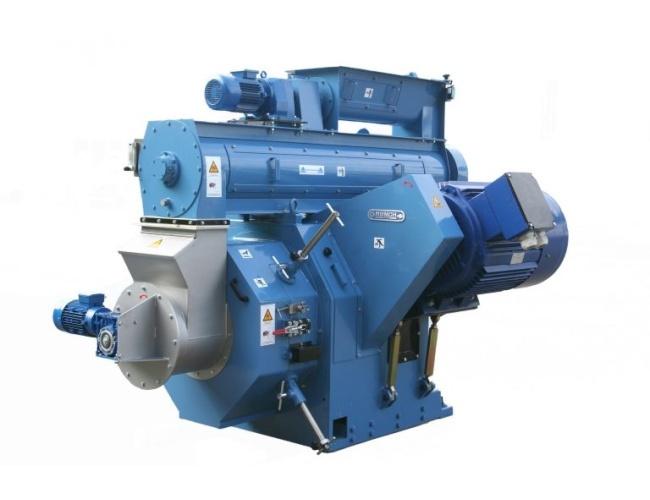

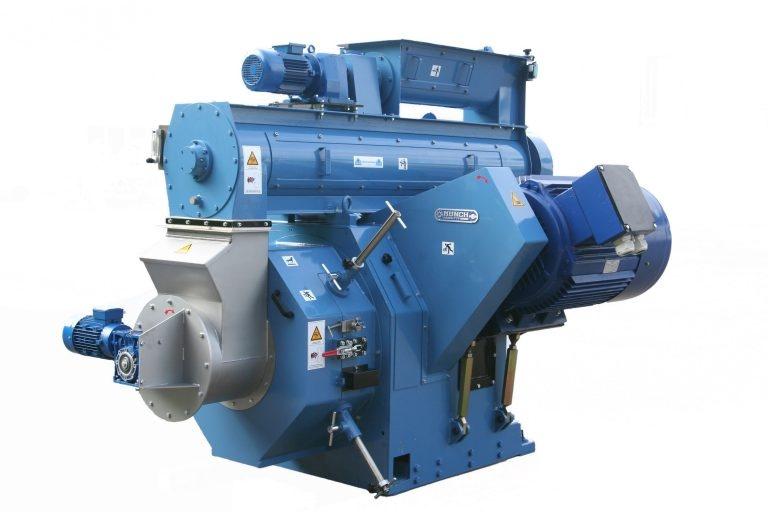

RMP-520 Pellet Press
Controlled raw material feeding screw with frequency converter
Conditioner with raw material humidification system
Automated greasing system for shaft and rollers - Total Ceran XM460/XM720 Grease
Rollers with temperature sensor
Optional accessories for Wood Shavings Pellet Press RMP-520
Automated control panel with LCD and soft-starter, internet connection, LG, Schneider, Eaton components
Air compressor, Steam generator
Rollers, Ring dies for 6-14 mm pellets - Munch
Consumables
